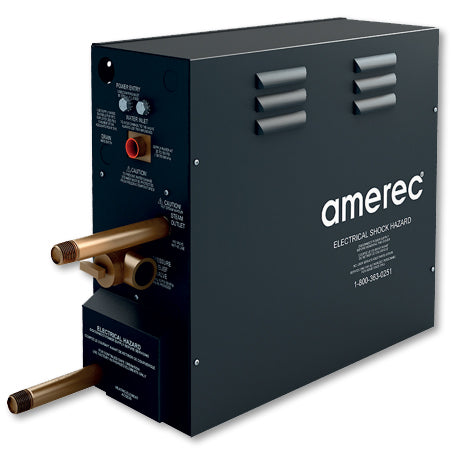

Amerec AK9 Steam Generator
Steam Generator Sizing Guide
The soothing and purifying effects of steam bathing are a direct result of the bath’s ability to minimize temperature variations and maintain an even flow of steam. Amerec AK generators were purpose-designed for home use, transforming your shower or bathing room into a daily invitation to comfort.
An AK generator uses full power to quickly heat up the steam room to its preset temperature, then cuts power by 1/3 or 2/3 of its heating elements. The result is a more consistent flow of soft steam and more stable temperature – the perfect conditions for relaxing and recharging whenever the mood strikes you.
- Amerec AK9 Steam Generator for steam rooms up 150 to 300 cubic feet
- AK generators can be connected together to heat steam baths larger than 550 cubic feet.
- Stainless steel tank and water level probes provide years of trouble-free operation.
- 240 and 208 volt models can be wired in the field for 1 or 3 phase power.
- Removable heating elements provide easy and economical service.
- Tested to IEC standards
- ETL listed for USA and Canada
- AK generators come equipped with 1/2" steam outlets
Columbia Package - Includes K60 Digital Control
K60 Digital Control
This top of the line Amerec temperature control utilizes an easy-to-use membrane touch pad to maintain the steam bath environment. Suitable for inside or outside the steam/shower enclosure, the surface-mounted K60 control offers time and temperature settings capability, on/off and pause modes combined with a digital display for sophisticated steam bathing control and pleasure.
- K60 3-button digital control with on/off, temperature and time duration setting.
- Display alternates between ambient room temperature and time remaining.
- Features remote sensor and can be mounted inside or outside steam room.
- Control kit includes K60 control, cable and ComfortFlo steam head.


Comfort Flo Steam Head
The ComfortFlo steam head is designed with a unique steam dispersion pattern that provides more even heat throughout the steam room and reduces the time required to reach the desired room temperature. Amerec ComfortFlo steam heads ensure each steam bath is a safe and pleasurable experience. Steam is delivered into the room through an internal Ryton plastic insulator, preventing the exterior metal surface from reaching high temperatures. The ComfortFlo steam head features a fragrance reservoir that allows the bather to enjoy the benefits of aromatherapy by adding their favorite fragrance to the reservoir.

Auto Drain Kit
The ADX valve is designed to drain and flush the generator tank after the end of each steam bath to reduce sediment build-up inside the tank, prolong heating element life and provide fresh water for each bath. The ADX drain and flush cycle waits approximately 17 minutes to allow water in the tank to cool, then calls for cold water input to further reduce water temperature before the motorized drain valve opens to drain the tank. Water continues to flow through the system to flush out sediment and debris, and then the tank remains empty until the next steam bath.

ADP Generator Drip Pan
The ADP generator drip pan is designed for use with AK, 3K and AX series steam generators. When properly installed and connected to an approved drain line, the ADP drip pan catches and drains away and water leaks from generator fittings. The ADP drip pan is constructed of stainless steel, features welded corners for reliability and an integral 3/4" stainless drain fitting.

R30K
- R30K basic on/off control.
- Green indicator light illuminates during generator operation.
- Control can be mounted inside or outside steam room.
- Control kit includes R30K control, cable and ComfortFlo steam head.

KT60
- KT60 3-button digital control with on/off, temperature and time duration setting.
- Display alternates between ambient room temperature and time remaining.
- Features integral temperature sensor and must be mounted inside steam room.
- Control kit includes KT60 control, cable and ComfortFlo steam head.

K60
- K60 3-button digital control with on/off, temperature and time duration setting.
- Display alternates between ambient room temperature and time remaining.
- Features remote sensor and can be mounted inside or outside steam room.
- Control kit includes K60 control, cable and ComfortFlo steam head.

DKT60 / K60
- DKT60/K60 dual 3-button digital controls display temperature and time.
- Adjustable time duration up to 60 minutes and temperature up to 125° F.
- Both controls alternately display room temperature and time remaining.
- KT60 features integral temperature sensor and mounts inside room.
- K60 control mounts outside room.
- Dual control kit includes two controls, cables and ComfortFlo steam head.

Auto Drain Kit
The ADK automatic drain valve is compatible with AK and 3K series steam generators. The ADK valve is designed to drain and flush the generator tank after the end of each steam bath to reduce sediment build-up inside the tank, prolong heating element life and provide fresh water for each bath. The ADK drain and flush cycle waits approximately 17 minutes to allow water in the tank to cool, then calls for cold water input to further reduce water temperature before the motorized drain valve opens to drain the tank. Water continues to flow through the system to flush out sediment and debris, and then the tank remains empty until the next steam bath.

ADP Generator Drip Pan
The ADP generator drip pan is designed for use with AK and 3K series steam generators. When properly installed and connected to an approved drain line, the ADP drip pan catches and drains away and water leaks from generator fittings. The ADP drip pan is constructed of stainless steel, features welded corners for reliability and an integral 3/4" stainless drain fitting.

ASX100 Filter System
ASX100 single sump/cartridge system with replaceable cartridge featuring a ScaleX2 filter to reduce scale build-up and extend element life. Replacement Filter Kits available.
Installation Manual & User Guide | Download
