Description

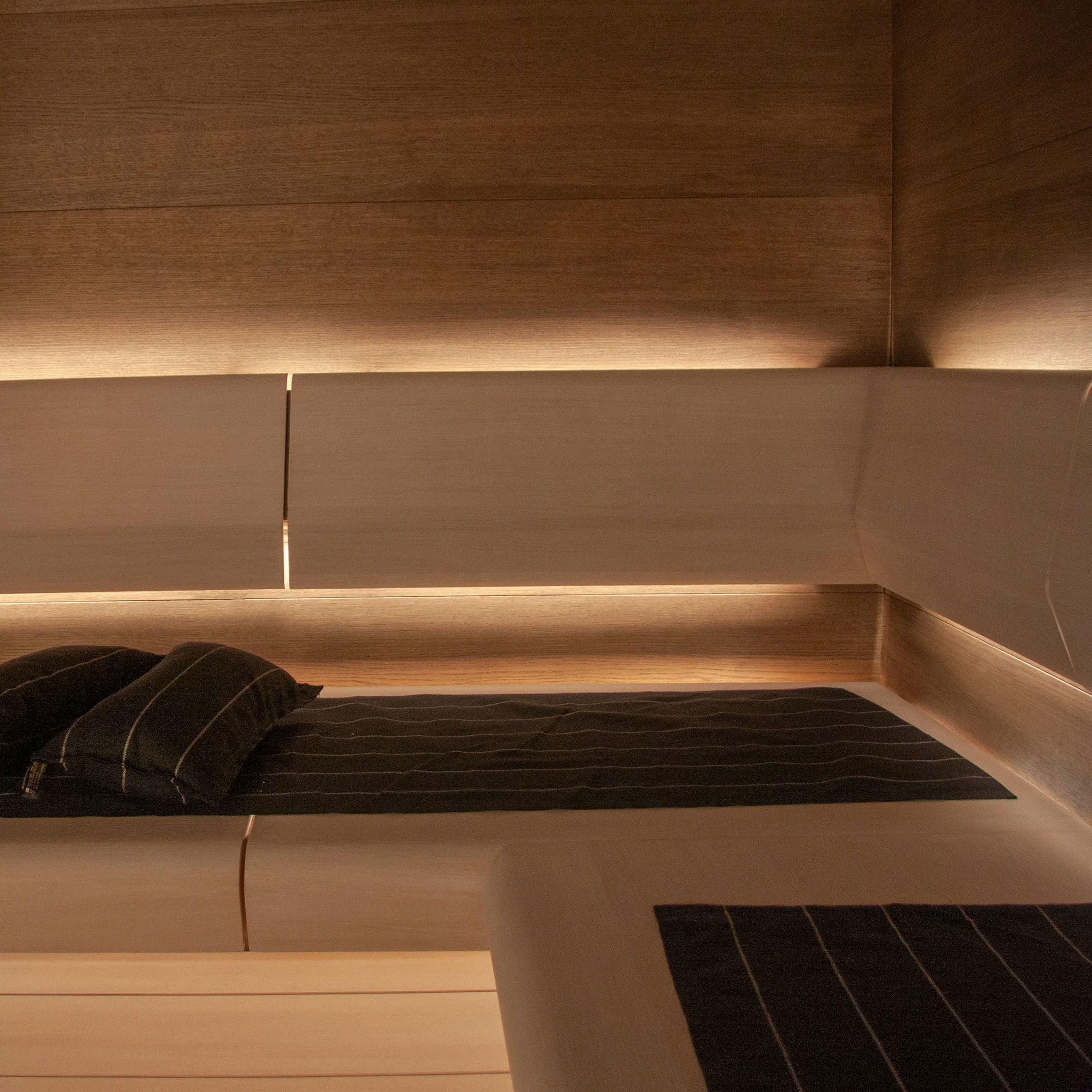

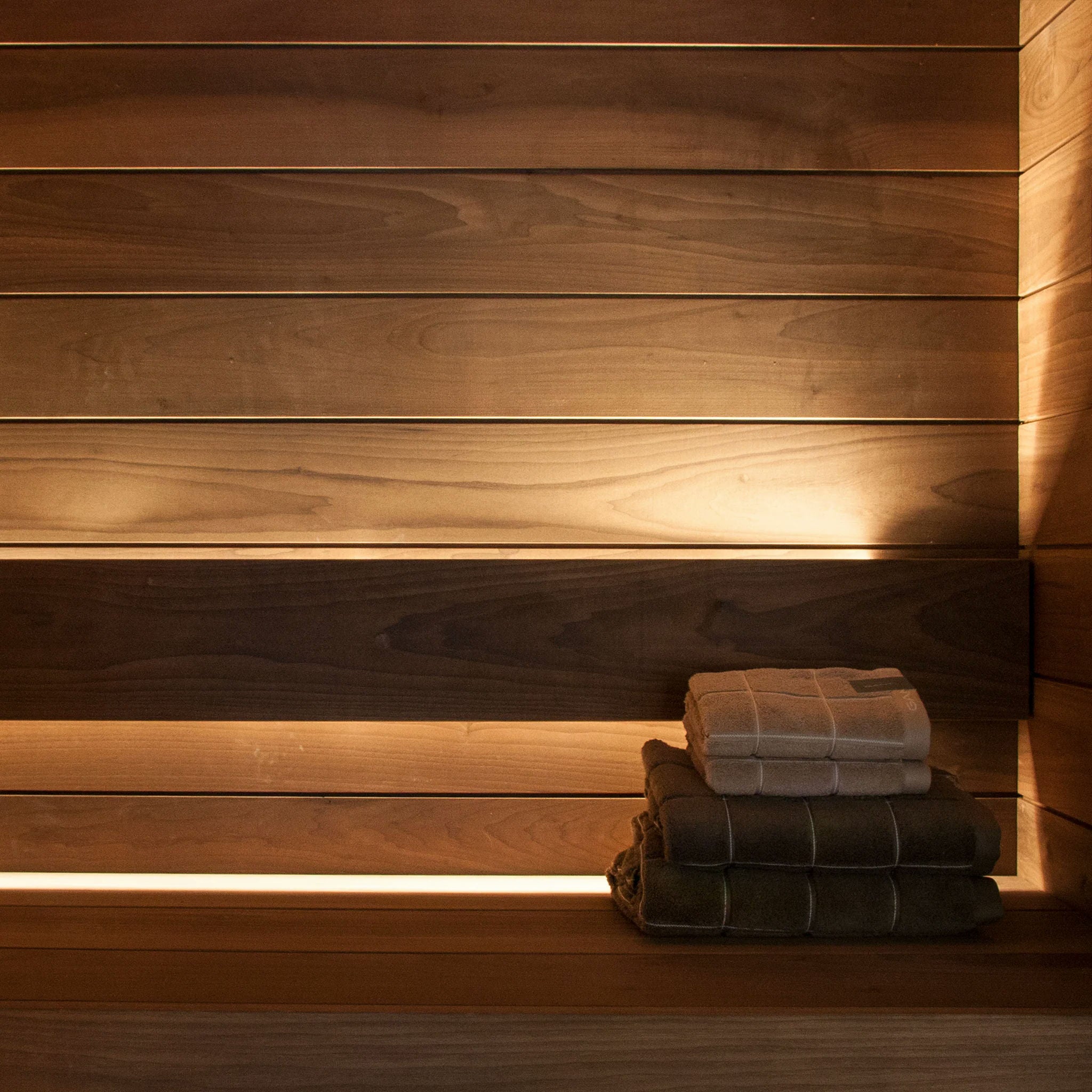

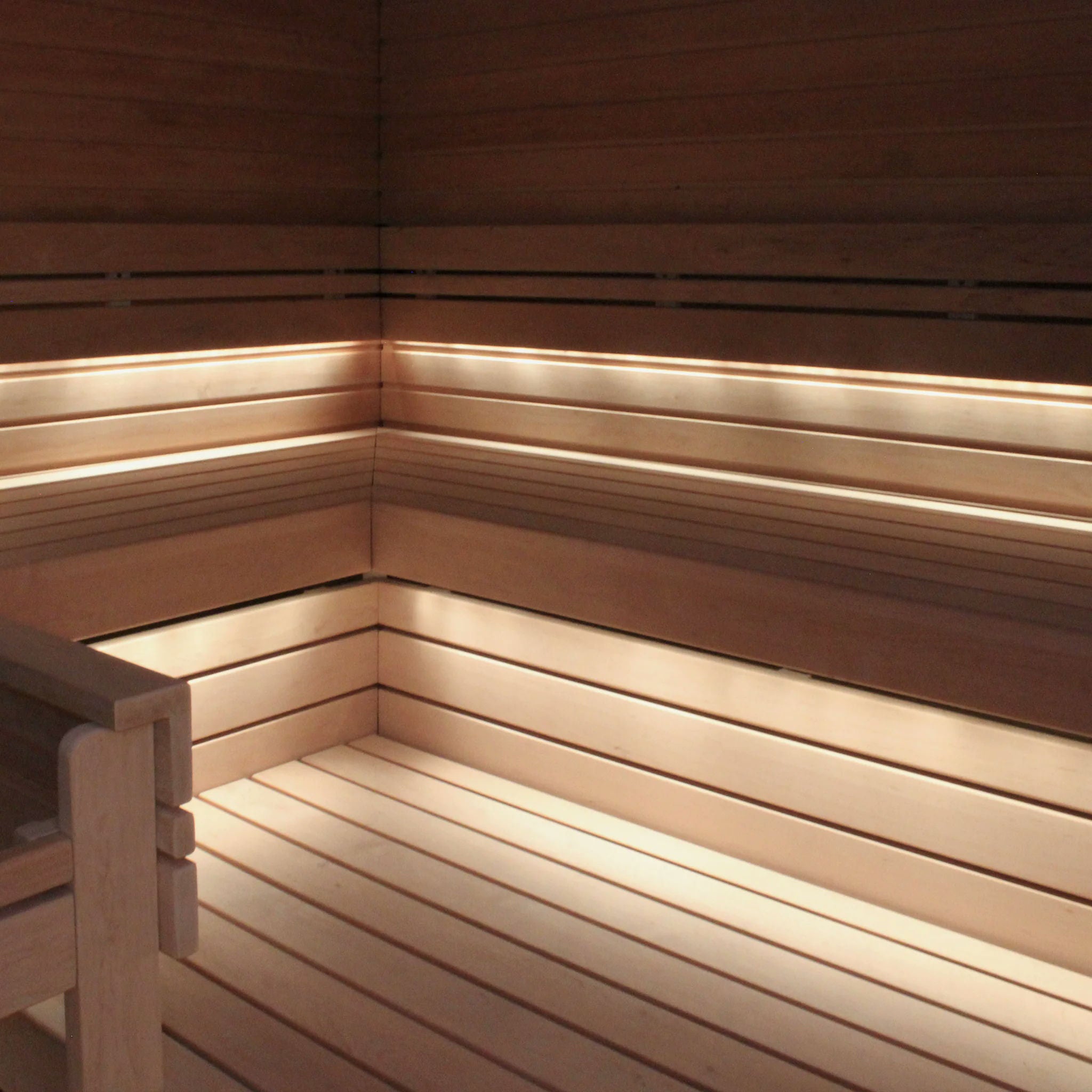

CARIITTI'S OPTICAL LIGHT BARS GIVE MODERN EVEN LIGHT FOR THE BACKREST or the FRONT EDGE of YOUR SAUNA BENCH
- With the 3M set, you get one 10 ft long luminaire by connecting two 4.9 ft linear bars and the LEDs
WHY ARE CARIITTI’S LIGHT BARS a MUCH BETTER and MORE DURABLE OPTION for SAUNA USE THAN LED STRIPS
Standard LED strips consist of small LED chips along the length of the strip, and each of them will wear our randomly on their own pace, which means that there will be gaps in the light line over time, and/or the light is “dotted”.
Cariitti's light bars have light heads on both ends of the optical bar and the light is “shot” from both ends of the optical bar, so the light line is even and will stay so over time.
Also the structure of the Cariitti’s light bars is specifically designed for sauna use, the led components carefully selected for use in hot and humid spaces. Cariitti has 25 years of experience in lighting manufacturing, especially in sauna and spa lighting.
- Specifications
- Installation
- Light Switch
- Warranty

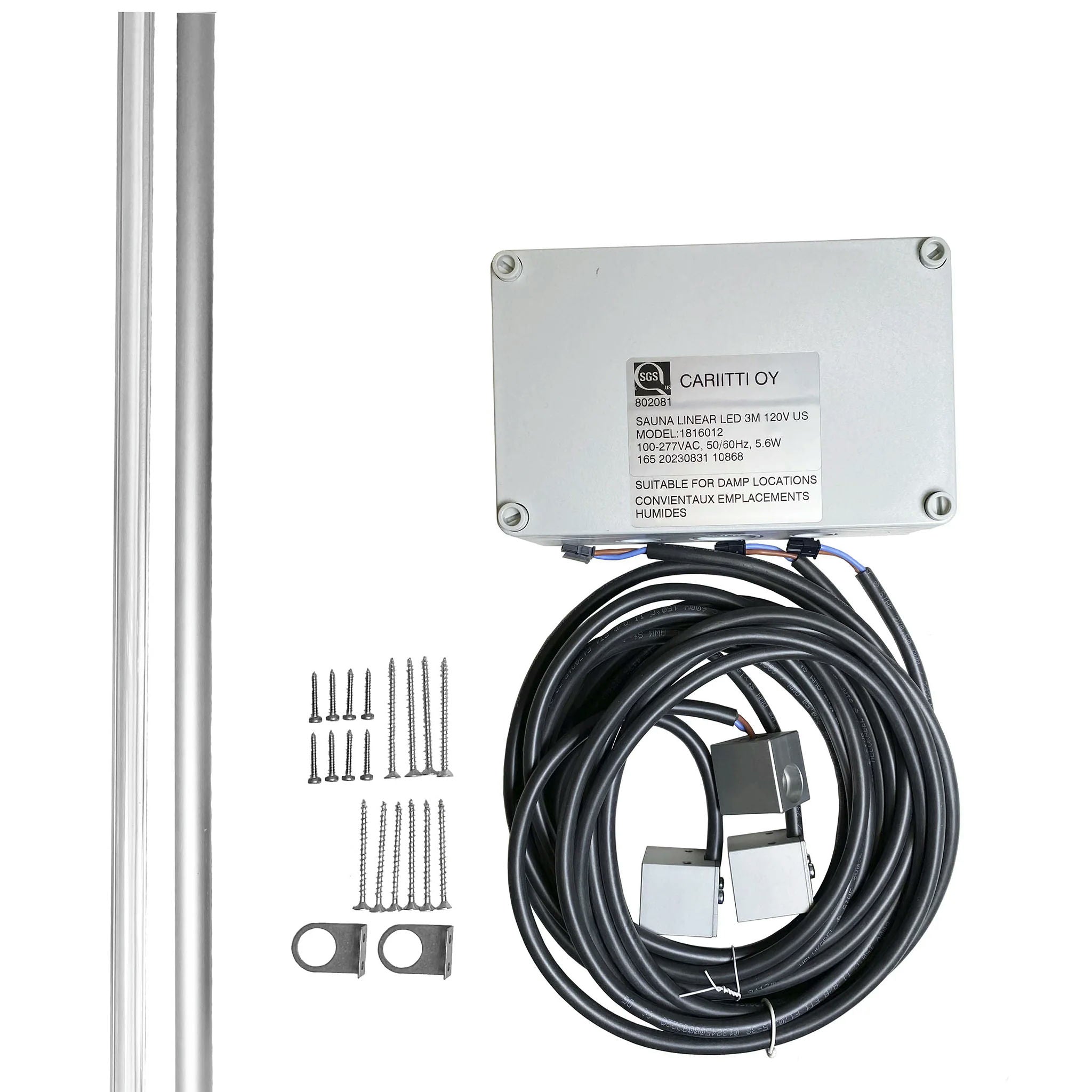

OPTICAL LIGHT BAR 10' / 3M (120V) SET INCLUDES
- 2 pieces of 4.9 ft optical light bars
- 3 pieces of LEDs with 8.2 ft cables
- LED: 3000K, 1 W, 350 mA *
- A junction box IP55*
- Dimming by Dali or push button
Cariitti's light bars are UL and CSA certified: UL1598 | CSA C22.2
INSTRUCTIONS AND INSTALLATION
- The power supply is mounted in a junction box, IP55, max. Ta 131 °F.
- The junction box can be installed inside the sauna, on the wall under the benches.
- The maximum installation height of the junction box is 1.8 ft from the floor, please see the installation manual.
- The maximum installation height of the bars and the LEDs is 5 ft from the floor.
- The optical light bar can be shortened, with a circular saw or similar.
Light switch is not included. We recommend using a regular light switch (push-to-dim) with your sauna light set, such as: Leviton switch 5655-2W or Zooz Momentary Push-Button in-Wall Switch ZAC99 from Amazon.
ARE CARIITTI LIGHTING SETS DIMMABLE?
Yes, Cariitti sauna light sets are dimmable. Cariitti lighting sets can be dimmed with a regular push-to-dim dimmer, such as: Leviton switch 5655-2W or Zooz Momentary Push-Button in-Wall Switch ZAC99. The dimmer is not included in the Cariitti sets but can easily be bought from your local hardware store or Amazon.
Cariitti has tested the Leviton model 5655-2W, and it works as a dimmer because the driver in the light set has a dimming function in it. The same switch may not work with other light sources but with the Cariitti lighting sets it works for on/off and dimming:- Short push - on/off
- Longer press – dim down/brighter up
- When you stop pressing the switch, the level of brightness stays as is
-
A new longer press starts to brighten/dim the light
SIMPLIFIED WIRING DIAGRAM FOR THE SWITCH
NOTE: Both the switch and the driver need feed from the mains (110V) as shown below.
5 YEAR WARRANTY
Cariitti’s lighting sets come with a 5 year warranty by the manufacturer, excluding incorrect installation or use.
