Tylo Steam Door 60G

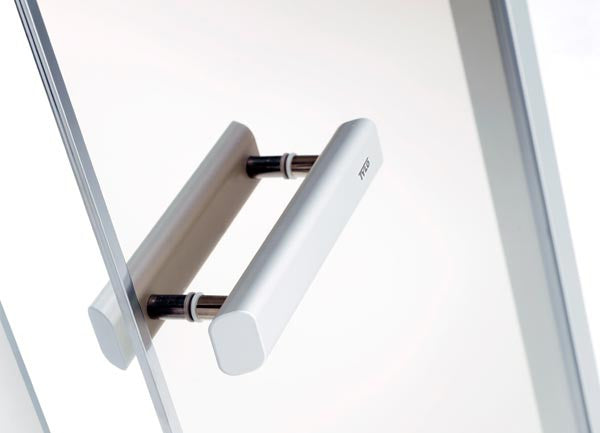

Tylo hinged doors for showers and steam rooms have an extra robust design to cope with wear and tear and heavy trafﬁc in demanding environments such as public bathing facilities. They are manufactured in 6 mm tempered, safety glass with protective stainless steel trim round the edges and hung in a robust aluminum frame. Door leaves come complete with aluminum handles and hinges, and magnetic strips for a tight seal. There is a drainage strip and air vent at the base of the door.
- Exterior Jamb Dimensions: 73 5/8" x 30 5/8" x 2 3/8" ADD 1/2" on sides and top for rough opening
- Width of opening: 26 3/8"
- Clear glass with aluminum frame.
- Universal, may be mounted for left or right swing
- Installation Manual
Why is there a gap at the bottom of my steam door?
Steam doors are not completely airtight; they have a small gap at the bottom for ventilation. The gap between the bottom edge of the door and the door sill serves as the air intake vent for the steam room. This does not allow steam to escape, since steam is lighter than air, and rises. The gap at the bottom of the door also allows cooler air to enter the shower for a denser steam experience.
(To show examples of the steam door air vent we are using photos of our Frosted Steam Door. Tylo's air vent is similar.)
